BIK – MAHSHAHR PETZONE/RAZI JETTIES

Geographical position: Â 30.26 N Â Â 49.05 E

Water Density: 1.028-1.032

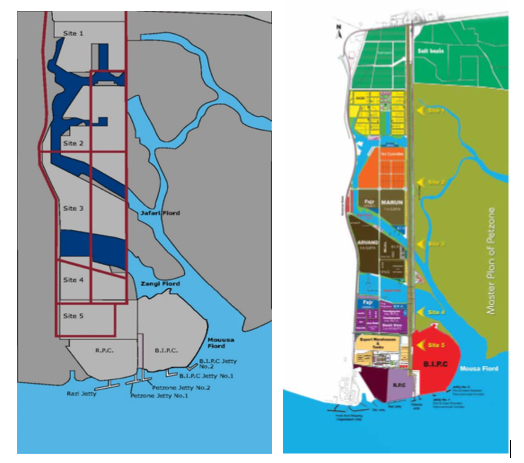

Petrochemical Special Economic Zone (PETZONE) is located in the south–west of I.R. of IRAN, at the Persian Gulf shore, within the boundarie s of Mahshahr, a district of Bandar-e- Imam Khomeini (BIK) run by PCC





BIPC, Razi & Farabi are included to PETZONE UNDER TTPC MANGEMENT AND OPERATION

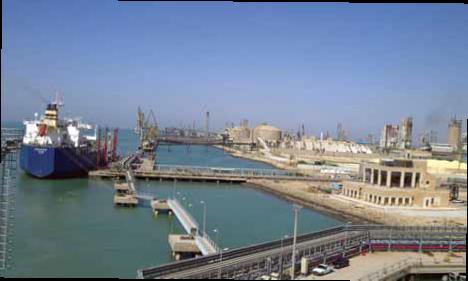

PETZONE are supported by 7 exclusive jetties for handling 10-15 million tons of liquids and solids per year.







BERTS SPECIFICATION

BERTH

BERTH

MAX

Length



LOAD RATE





NAME

NO.

DRAFT/MTR.

Meter

CARGO

MT

TEMP/C

REMARK

PETZONE

P3

12

237.5







FIXED WITH SHIP’S LOADER/UNLOADER

PETZONE

P4

12

237.5

BUTADIENE

200/HR

+19

FIXED WITH SHIP’S LOADER/UNLOADER

RAZI

P5

11.5

237.5

UREA /

SULPHUR

4000-5000/DAY



EQUIPED WITH CONVEYOR BELT

RAZI

P6

11.5

237.5

AMMONIA

500-700/HR

-30

EQUIPED WITH CONVEYOR BELT

RAZI

P6

11.5

237.50

UREA/SULPHUR

4000-5000/DAY





RAZI

P7

11.5

237.5

AMMONIA

500-700/HR

-30

EQUIPED WITH CONVEYOR BELT



P.C.C. EXPORTS: PROPANE, BUTANE, C5 PLUS, AMMONIA, METHANOL, MEG AND SULPHUR.

P.C.C. IMPORTS: CHEMICALS (ORTHO – XYLENE & 2 ETHYL HEXAGONAL).

VESSELS FOR LOADING MORE THAN 10000 MTS. ARE ACCEPTABLE AT NO.1 & N0.2 PETROCHMICAL JETTIES ONLY.



RAZI PETROCHEMICAL COMPANY-

Produce Ammonia, Urea (granulate), DAP, Sulphuric acid, Sulphur

Discharging: Rock Phosphate

Bulk Urea is being loaded at berth no. 1 & 2 (P5 AND P6) Â Razi Jetty with Conveyor Belt at the rate of 4000-5000 MTS. per day

Loading is Mechanized and carry out with shoot and loading arms and discharging with evacuators

Ammonia loading in tankers with 14 inches pipe connection hose  at jetty No.P6&P7 at the rate of 500- 700 tons/hr.



 2: Bandar Imam Petrochemical Complex (BIPC)

                      BERTHS SPECIFICATION

BERTH

MAX

Length



LOAD RATE





NO.

DRAFT/MTR.

Meter

CARGO

MT/HR

TEMP/C

REMARK

P1

12.5

300







FIXED WITH LOADING ARAM

P2

11

200

C3 & C4

1000

-40/-4C

FIXED WITH LOADING ARAM

P2

11

200

ETHYLENE

1000

-98

FIXED WITH LOADING ARAM



C3= PROPANE                                  C4=BUTANE

Due to the loading arms are fixed, hence the tankers should be shifted forward and backward for loading, therefore only one vessel can be loaded/discharged at each jetty, simultaneously

COMMODITIES ; ETHYLENE, PX, BENZENE, PROPYLENE C3, C4 AND C5

EQUIPPED WITH FIXED LOADING ARMS TO LOAD VARIOUSÂ PETROCHMICAL CARGO AT RATE OF 200-1000 MTS PER HOUR
