QESHM KAVEH PORT

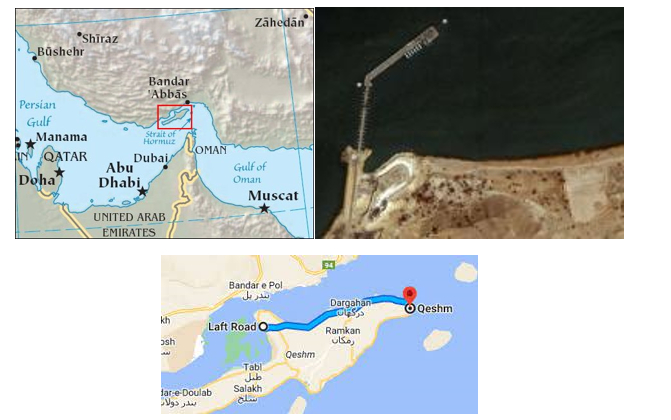

Geographical position: lat 26o 57Â’ N long 55o 59Â’ E

Kaveh Port is located on Qeshm Island, opposite to the commercial port Bandar Shahid Rajaee at Bandar Abbas, Islamic Republic of Iran, Close to the strait of Hormuz.

The marine entrance into the Persian Gulf within Qeshm Free Zone Area, operated by G.O.I.O.C Qeshm Oil industry offshore Co.

Approach  : Approach to Kaveh Port/Jetty y an access channel of appr. 10 sm with a draught

Between 13 and 21 meters (should be verified).

Affected by tides, with a difference of about 2.5 meters.

All navigational matters are with PSO-Port and Shipping Organization of IR Iran.

Anchoring Positions

  • Anchoring Positions

A: 27 DEG    03’          N             056 DEG               12.6 E

B: 27 DEG    03’          N             056 DEG               15.0 E

C: 27 DEG    02’          N             056 DEG               12.6 E

D: 27 DEG    02’          N             056 DEG               15.0 E



BERTHS SPECIFICATION:

BERTH

Length

Draft





Meter

Meter

REMARK

INNER- SOUTH SIDE

140

10

VSLS WTH + 100 MTETERS IN SLACK WATER

OUTER- NORTH SIDEÂ </p

240

14

VSLS WTH + 120 MTETERS IN SLACK WATER



NOTE:

1 –       VESSELS BERTHING AT INNER BERTH SHOULD BE BERTHED FROM THE PORT SIDE.

2 –       WATER CURRENT AND SPEED AT AREA HAVE GREAT IMPACT IN VESSEL’S MANUVERING NEAR

            KAVEH QESHM BERTHS, THEREFORE TIME OF PROPER MANUVERING EXCEPT WHAT IT HAS BEEN

            MENTIONED ON REMARKS IS SUBJECT TO AGREEMENT BETWEEN OF PILOT AND MASTER.

3 –       PILOT REQUIREMENT NEED TO BE INFORMED TO VTS 3 HRS IN ADVANCE.
